Rolling Ladders

SKU # Print this page

Description

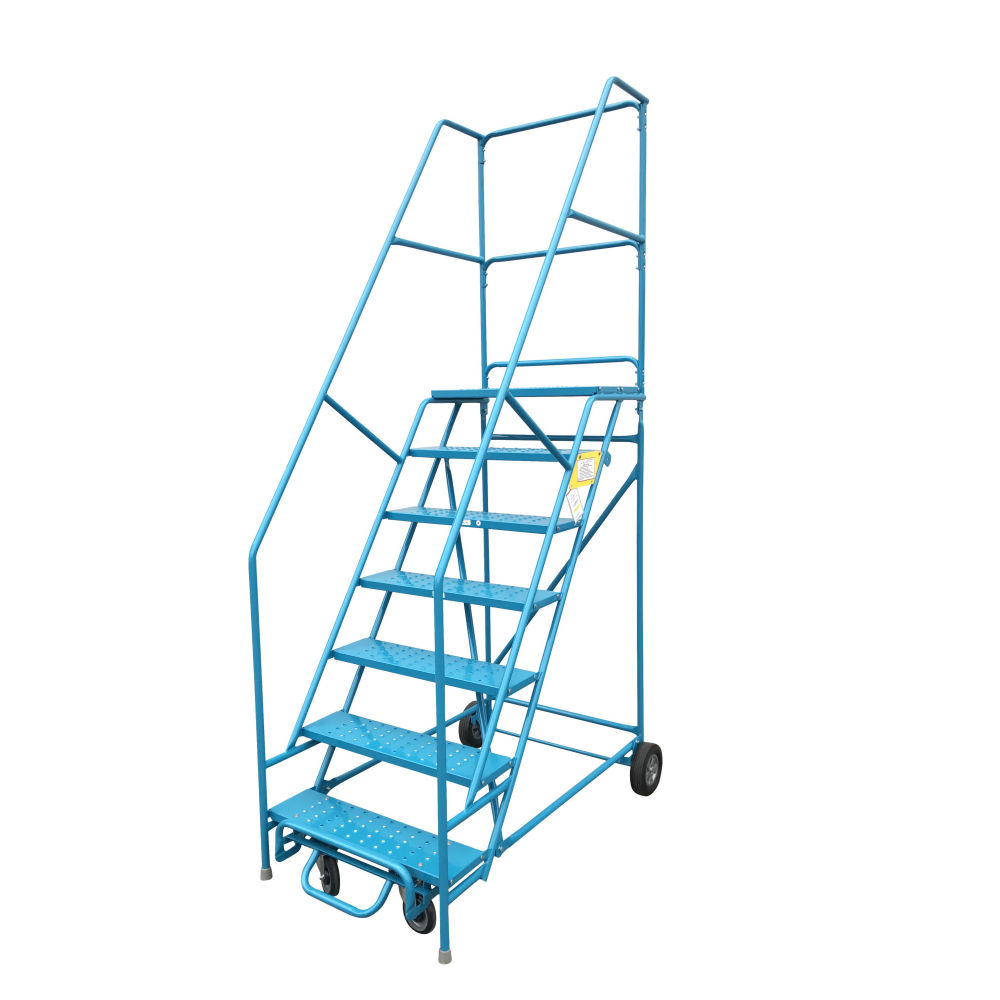

Unitran quality rolling ladders.

  • Top platform – 14″ deep
  • 300 lbs capacity
  • All Steel – Bolt together construction
  • All components are replaceable
  • Powdercoat paint finish
  • Perforated tread design prevents slipping
  • ANSI and OSHA Compliant
  • Detailed use and maintenance instructions are sent with each ladder

Brake Systems:

  • Automatic Brake on 2 – 6 step models
  • Positive Locking System with manual release on 7 to 20 step models
  • Either option available for 5 & 6 step models

Downloads

Overview

Model Number No. of
Steps
Platform
Height
Working
Height
Hand Rail Brake Type Base
W x L
Overall
Height
L02 2 1′ 6″ 7′ 0″ NO AUTO 26″ x 21″ 1′ 6″

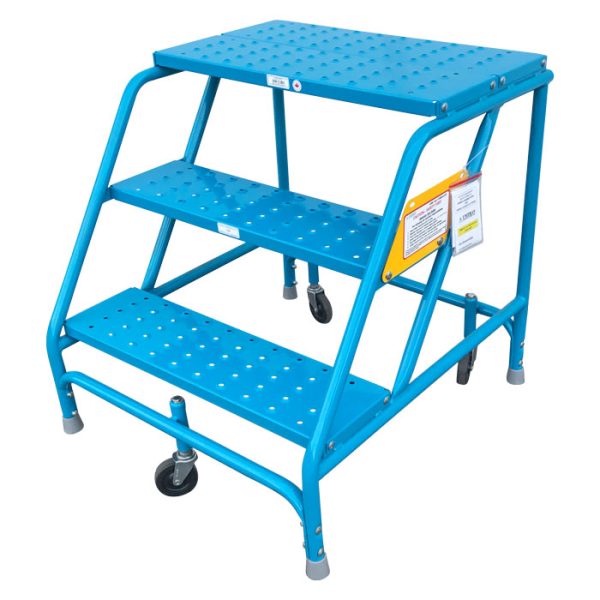

L03  3 2′ 3″ 7′ 9″ NO AUTO 26″ x 27″ 2′ 3″

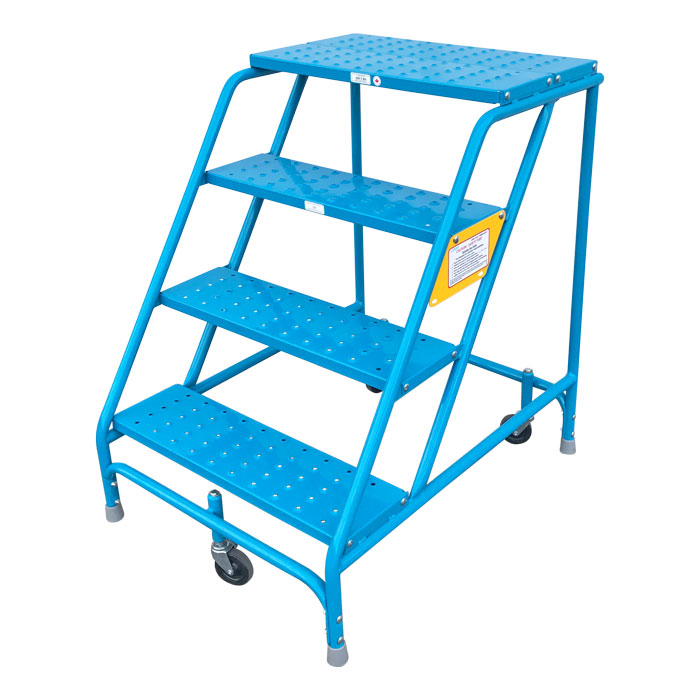

L04  4 3′ 0″ 8′ 6″ NO AUTO 26″ x 33″ 3′ 0″

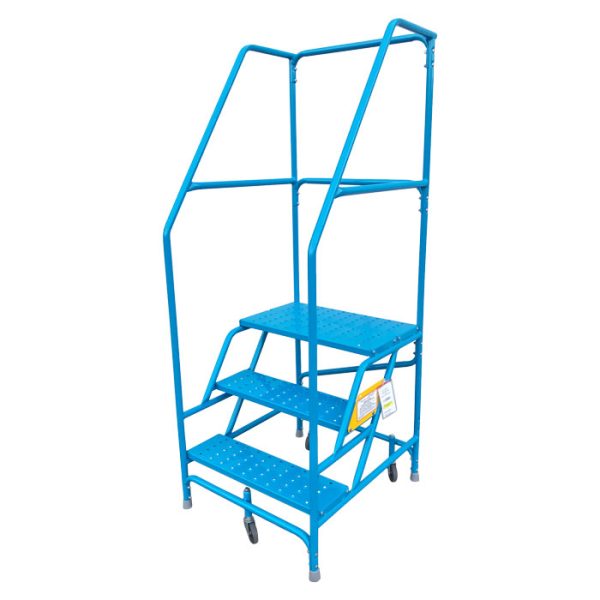

L03HR  3 2′ 3″ 7′ 9″ YES AUTO 26″ x 27″ 5′ 9″

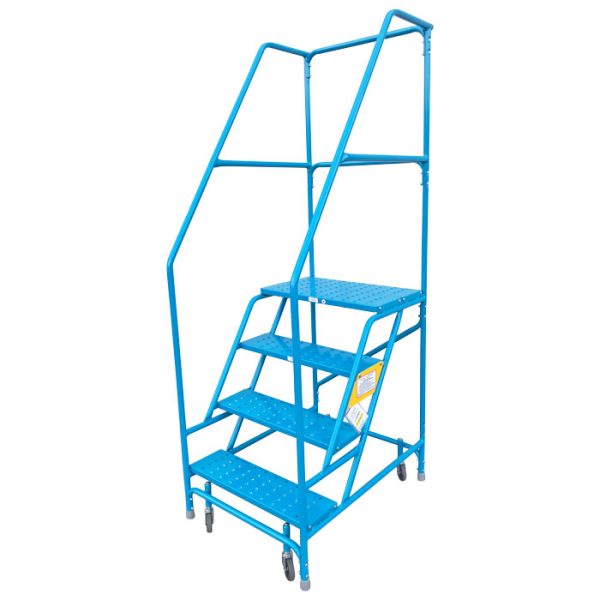

L04HR  4 3′ 0″ 8′ 6″ YES AUTO 26″ x 34″ 6′ 6″
L05HR  5 3′ 9″ 9′ 3″ YES AUTO 26″ x 40″ 7′ 3″

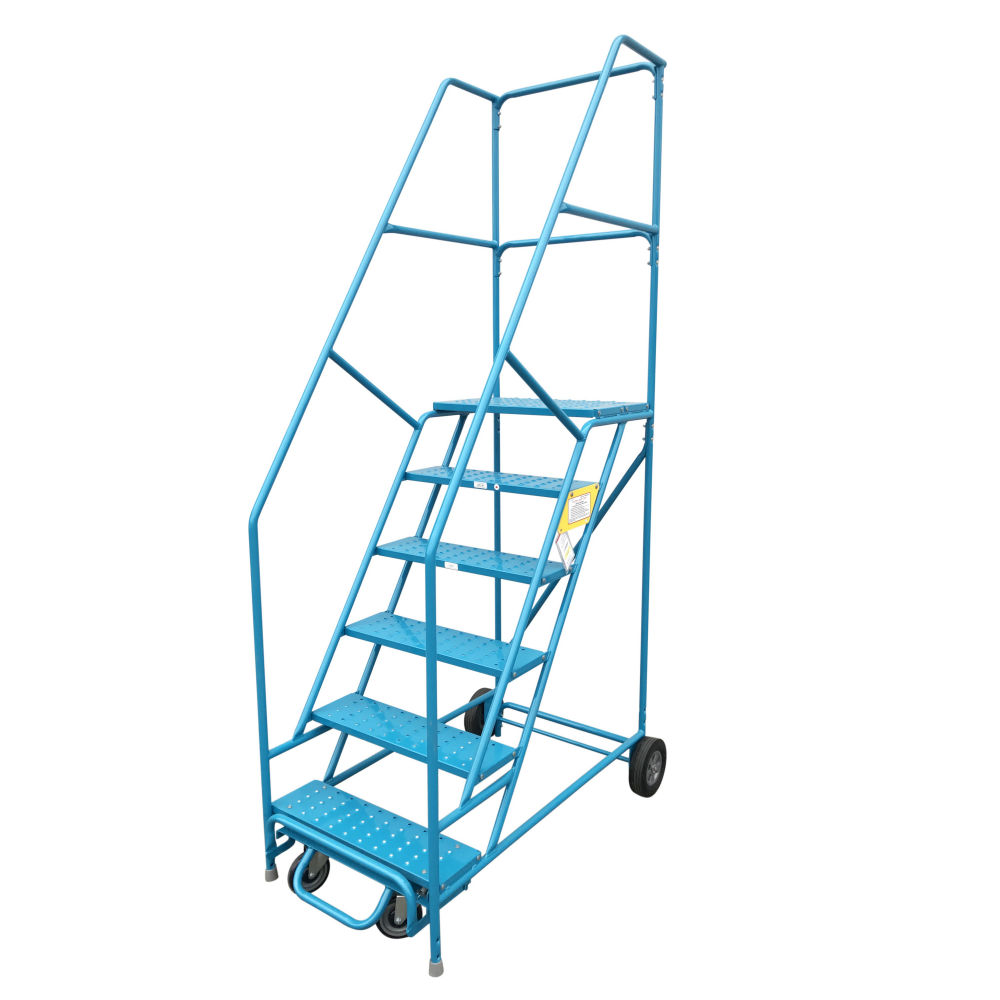

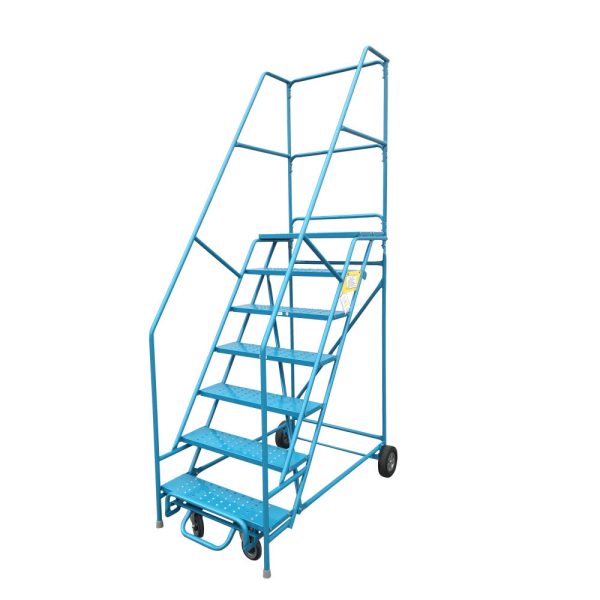

L06HR  6 4′ 6″ 10′ 0″ YES AUTO 26″ x 45″ 8′ 0″
L05HRL  5 3′ 9″ 9′ 3″ YES LOCK 31″ x 40″ 7′ 3″
L06HRL  6 4′ 6″ 10′ 0″ YES LOCK 31″ x 45″ 8′ 0″

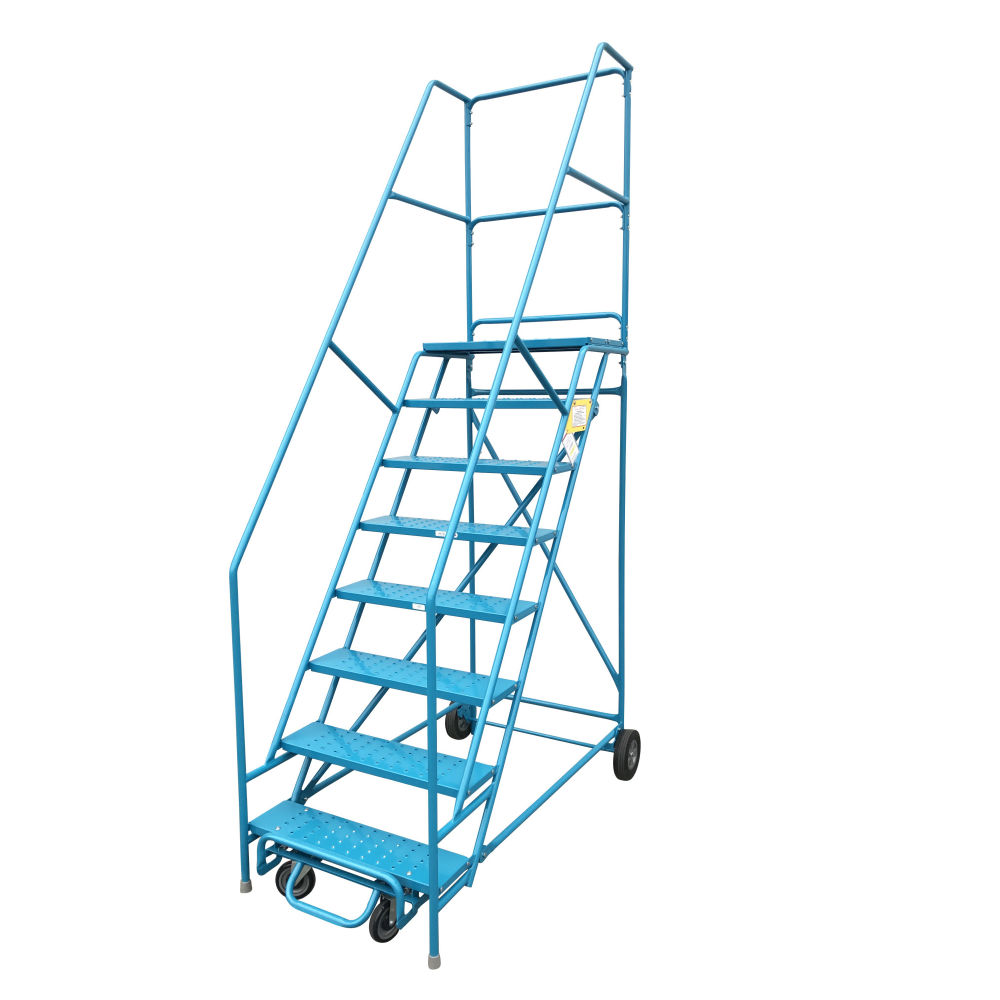

L07HRL  7 5′ 3″ 10′ 9″ YES LOCK 35″ x 51″ 8′ 9″
L08HRL  8 6′ 0″ 11′ 6″ YES LOCK 35″ x 57″ 9′ 6″

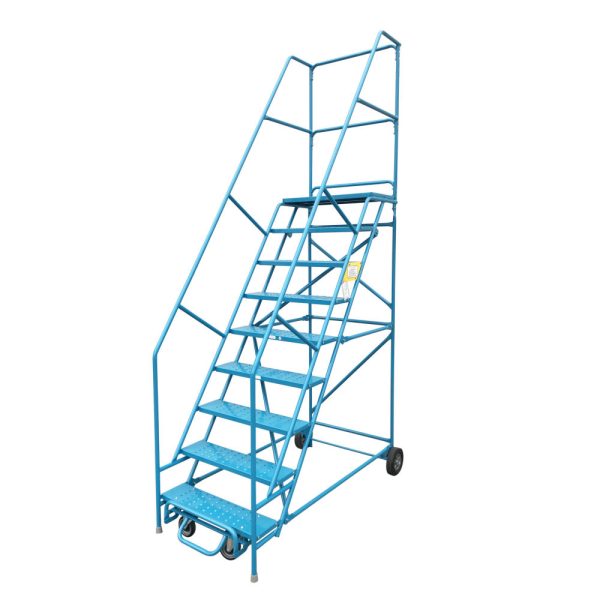

L09HRL  9 6′ 9″ 12′ 3″ YES LOCK 35″ x 63″ 10′ 3″
L10HRL  10 7′ 6″ 13′ 0″ YES LOCK 35″ x 69″ 11′ 0″
L11HRL  11 8′ 3″ 13′ 9″ YES LOCK 35″ x 74″ 11′ 9″
L12HRL  12 9′ 0″ 14′ 6″ YES LOCK 35″ x 79″ 12′ 6″
L13HRL  13 9′ 9″ 15′ 3″ YES LOCK 35″ x 84″ 13′ 3″
L14HRL  14 10′ 6″ 16′ 0″ YES LOCK 35″ x 90″ 14′ 0″
L15HRL  15 11′ 3″ 16′ 9″ YES LOCK 35″ x 96″ 14′ 9″
L16HRL  16 12′ 0″ 17′ 6″ YES LOCK 35″ x 104″ 15′ 6″
L18HRL  18 13′ 6″ 19′ 0″ YES LOCK 35″ x 114″ 17′ 0″
L20HRL  20 15′ 0″ 20′ 6″ YES LOCK 35″ x 126″ 18′ 6″
