Bar Stock Racking

SKU # Print this page
Barstock rack
barstock-rack-empty-webBar-stock-rack-solidworks-4Bar-stock-rack-solidworks-2Bar-stock-rack-solidworks-3Bar-stock-rack-solidworks-1Bar-stock-rack-solidworks-6Bar-stock-rack-solidworks-5bar-stock-rack-1bar-stock-rack-2bar-stock-rack-3

Description

Uses standard rack components for light duty applications. Bar stock racking is the most economical for light loads and is recommended for up to 12 ft height only.  Maximum arm length of 24”, adjustable on 3” centres.

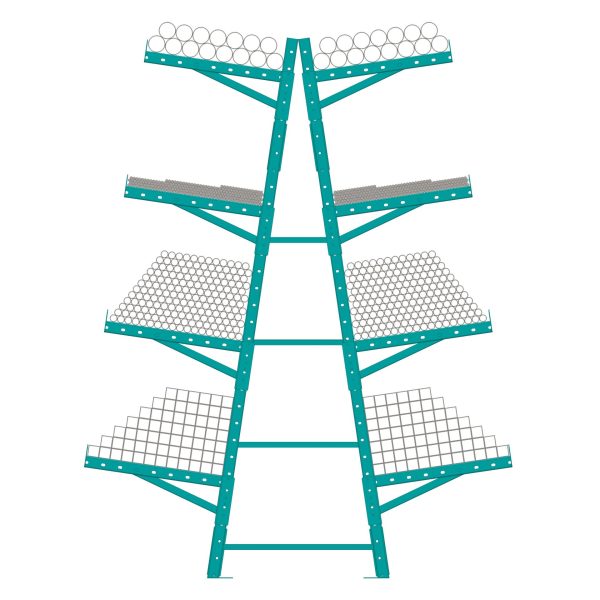

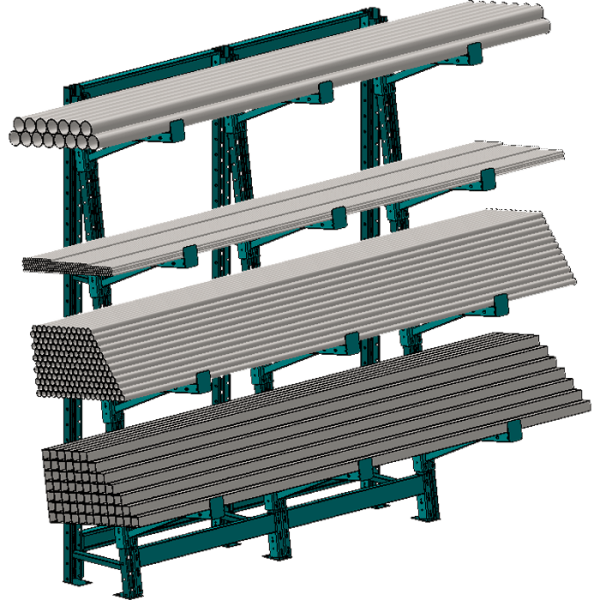

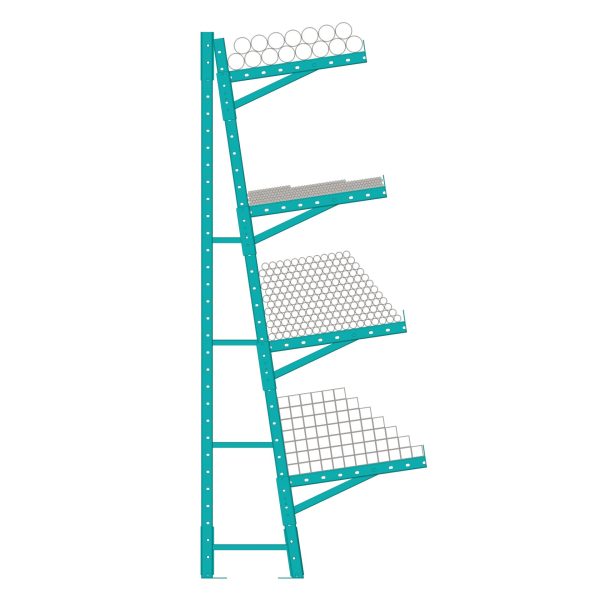

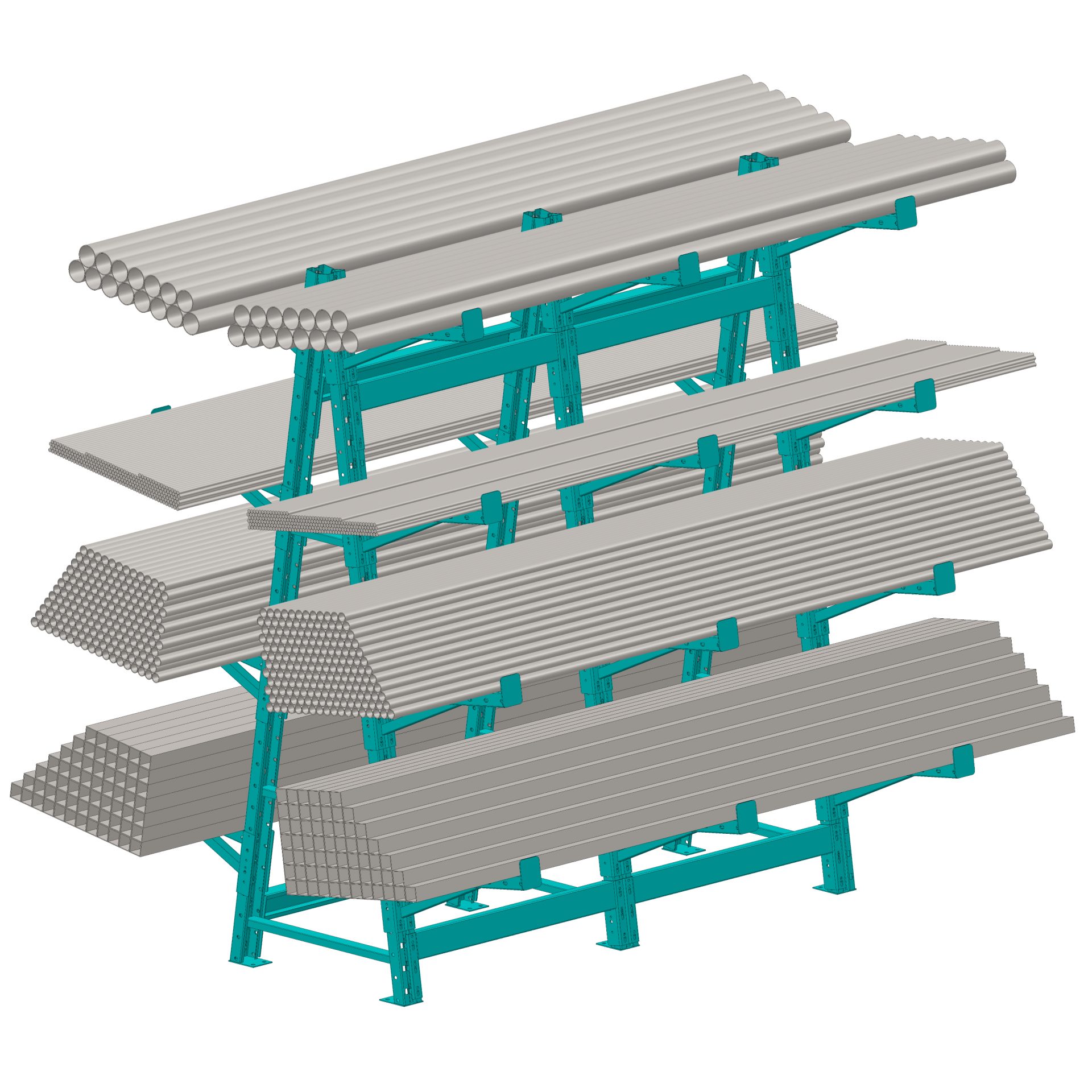

Ideal for hand loaded bar or long narrow trim or pipe.

  • Powder coated finish
  • Up to 600 lbs capacity per arm
  • Arm length of 9”, 12”, 18” and 24”
  • All arms attached with a double bracket connection

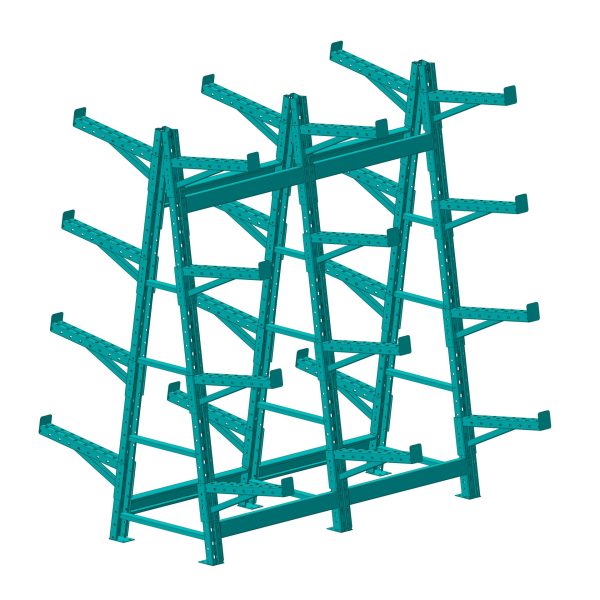

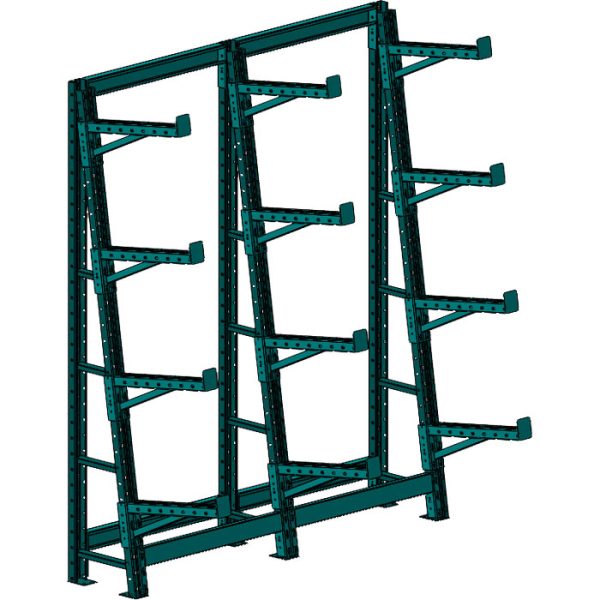

  • Available in single & double sided configuration

Overview

Stock Number Dimensions Capacity
 Bar Stock Arms
894/WBSA09 9″ 600 Lbs
894/WBSA12 12″ 500 Lbs
894/WBSA18 18″ 400 Lbs
894/WBSA24 24″ 300 Lbs
 Upright Frames

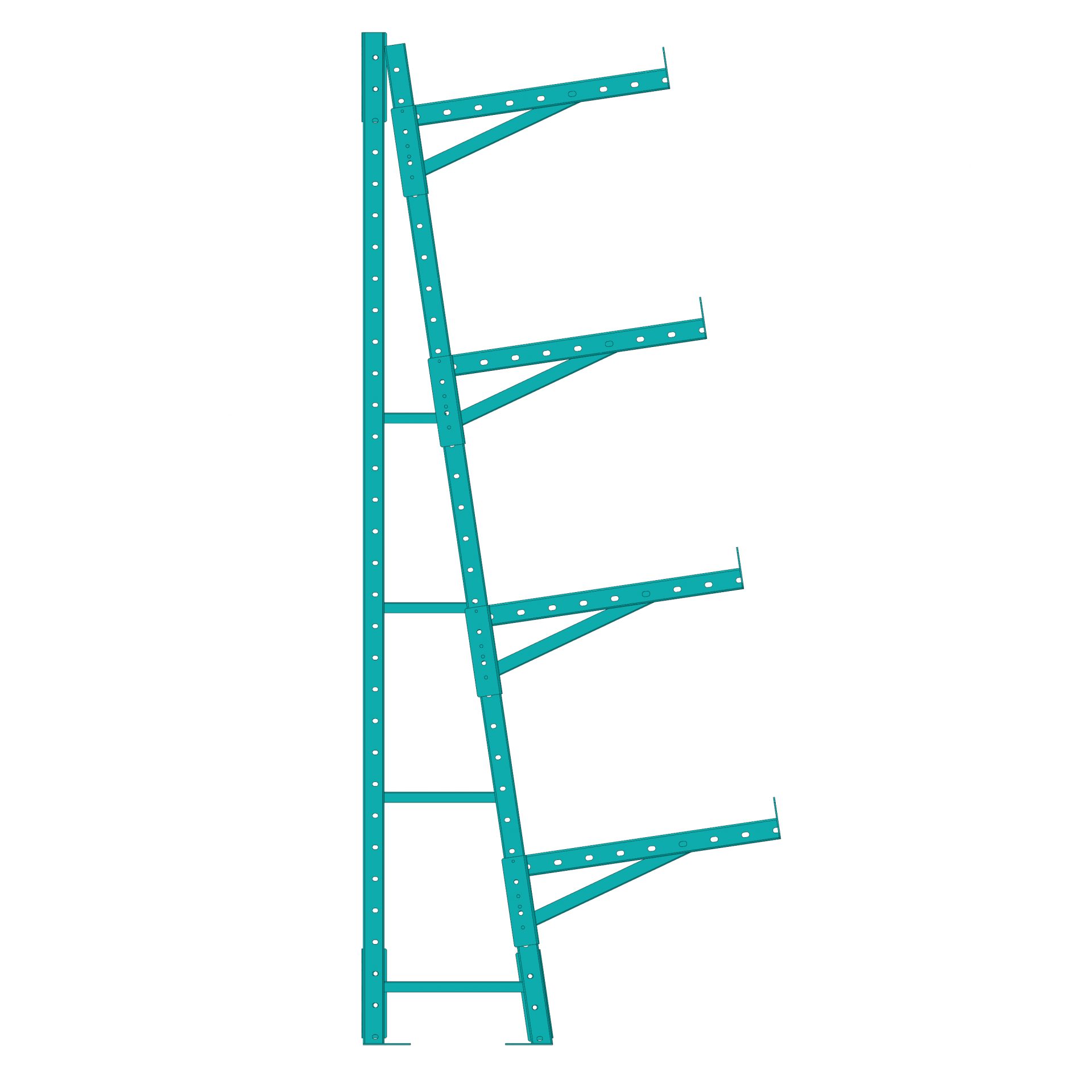

 “L” Frame
894/WSS96 18″D x 96″H

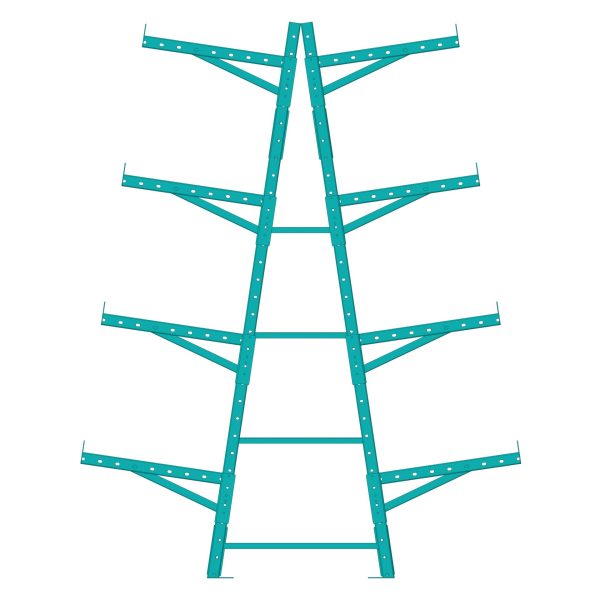

 “A” Frame
894/WDS96 32″D x 96″H
 Connector Beams
894/WCB36 36″W
894/WCB48 48″W
