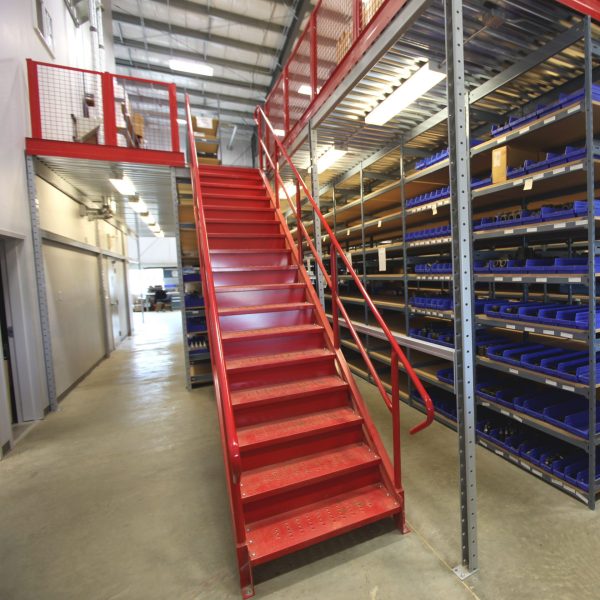

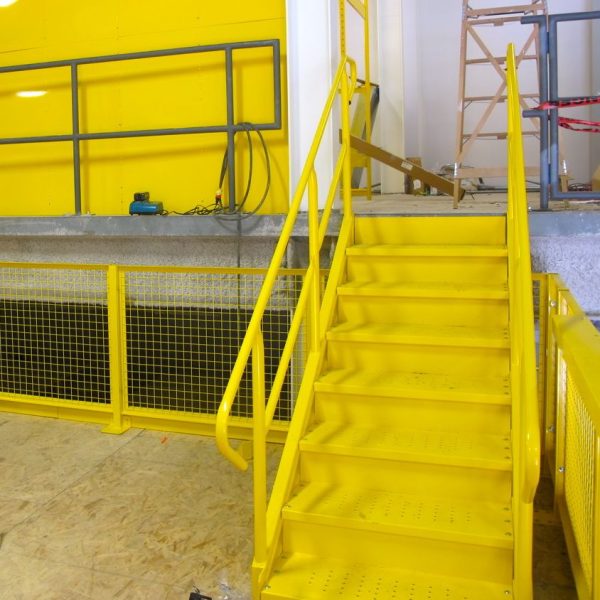

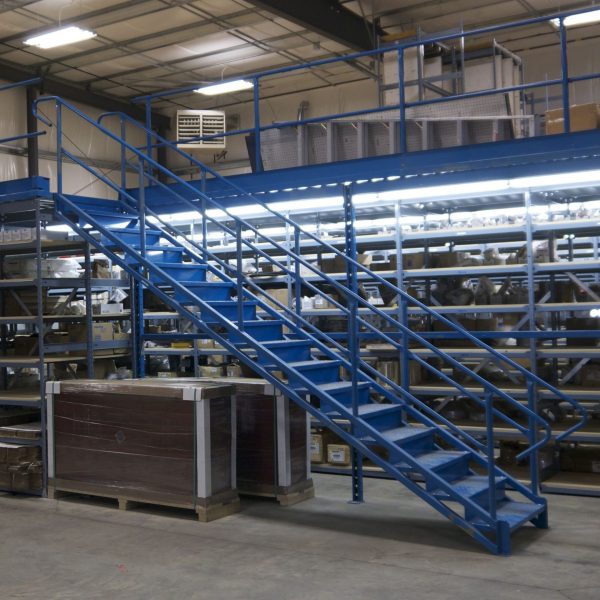

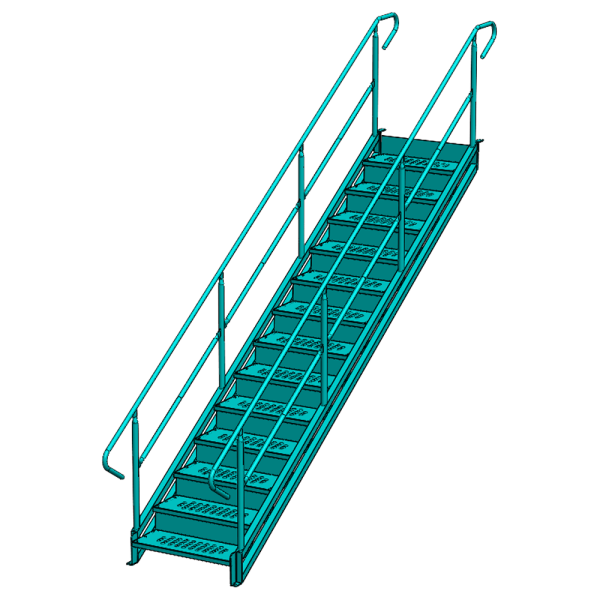

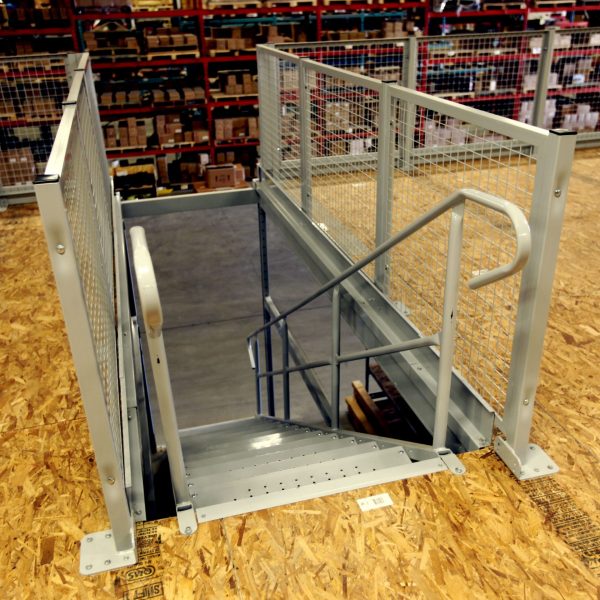

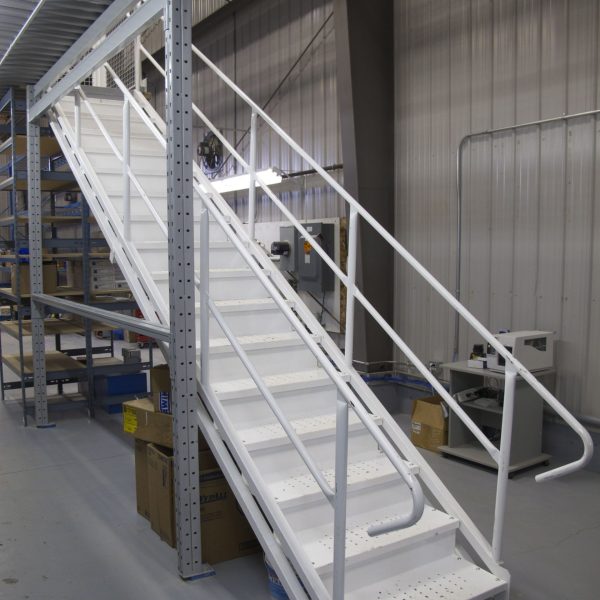

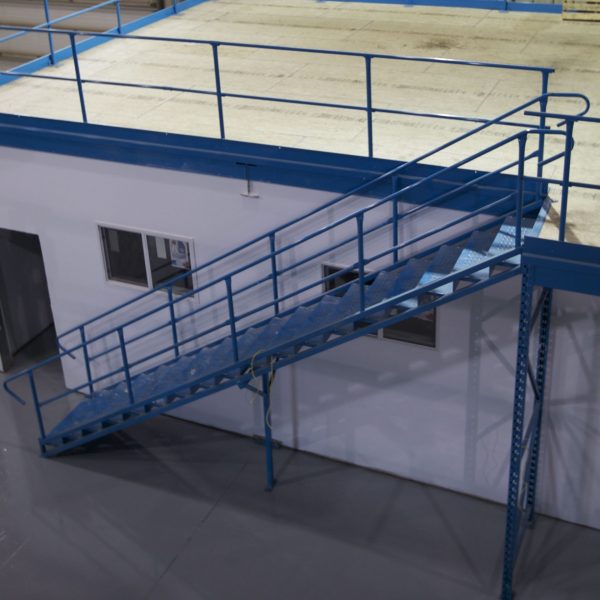

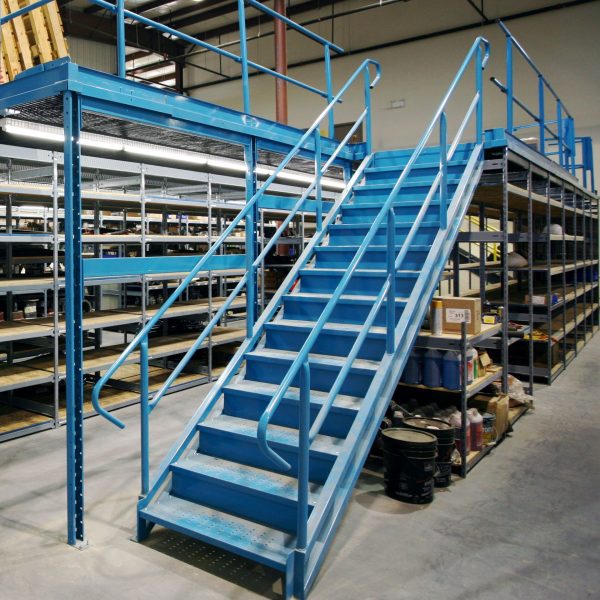

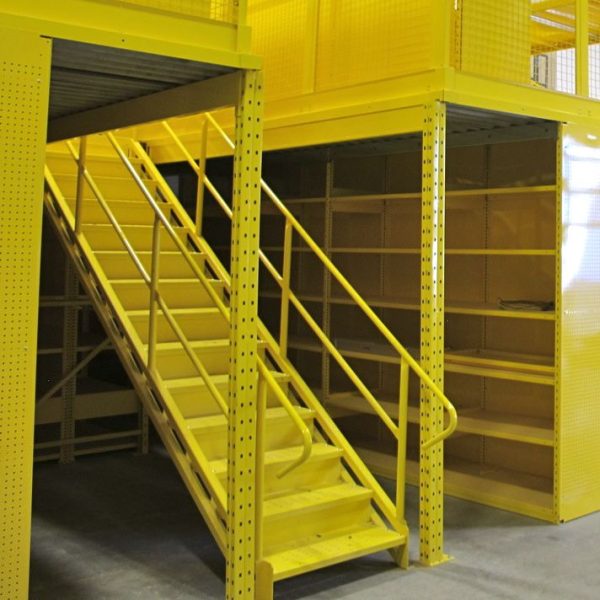

Staircases
SKU # Print this page
Description
- 36″ overall width
- 7″ rise with 11″ run
- 36″ high handrail above tread nosing
- Enclosed back
- 12″ handrail extension top and bottom of stairs
- Ships KD
- 300 lbs capacity per step
- Powder coated finish
Staircase Handrail Extension (PDF)
Staircase Assembly (PDF)
Staircase Construction Detail (PDF)
Staircase Support Brace (PDF)
Overview
| Stock Number | Height | Treads | Run |
| 760/SC028 | 28″ | 3 | 34″ |
| 760/SC035 | 35″ | 4 | 45″ |
| 760/SC042 | 42″ | 5 | 56″ |
| 760/SC049 | 49″ | 6 | 67″ |
| 760/SC056 | 56″ | 7 | 78″ |
| 760/SC063 | 63″ | 8 | 89″ |
| 760/SC070 | 70″ | 9 | 100″ |
| 760/SC077 | 77″ | 10 | 111″ |
| 760/SC084 | 84″ | 11 | 122″ |
| 760/SC091 | 91″ | 12 | 133″ |
| 760/SC098 | 98″ | 13 | 144″ |
| 760/SC105 | 105″ | 14 | 155″ |
| 760/SC112 | 112″ | 15 | 166″ |
| 760/SC119 | 119″ | 16 | 177″ |
| 760/SC126 | 126″ | 17 | 188″ |
| 760/SC133 | 133″ | 18 | 199″ |
| 760/SC140 | 140″ | 19 | 210″ |
*Note: Allowable deck height variance = 2% of stair run
Ex: SC119 with 16 treads and 177″ run (177 x 2% = 3.54″)
Deck height tolerance = 115.5″ to 122.5″
