Self Dumping Hoppers
SKU # Print this page
Description

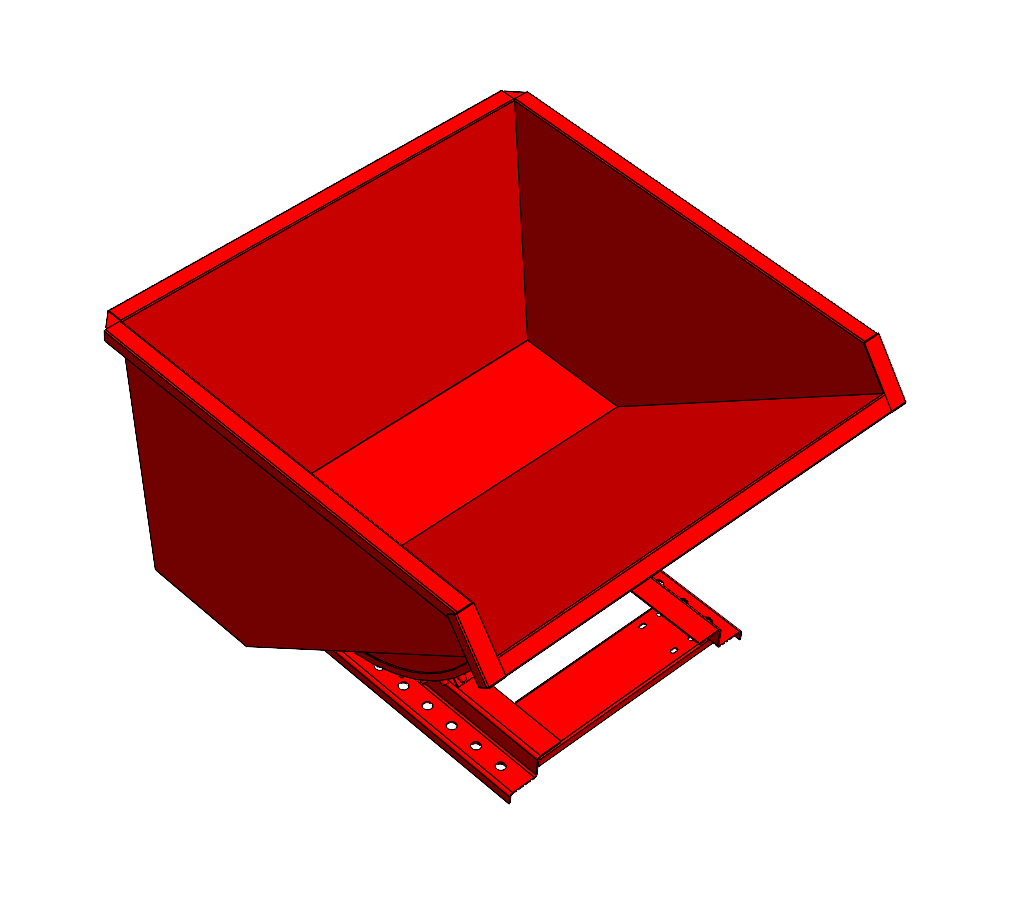

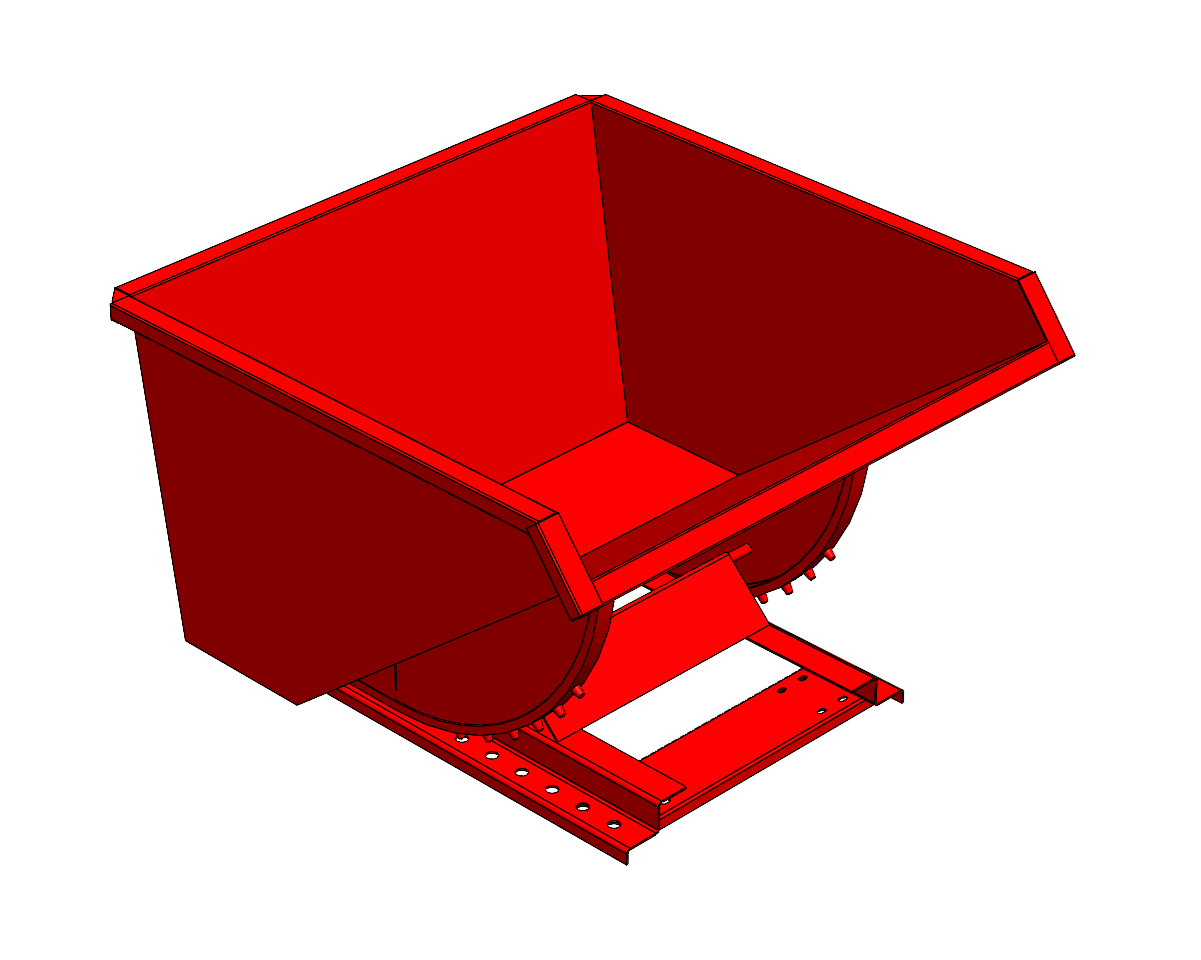

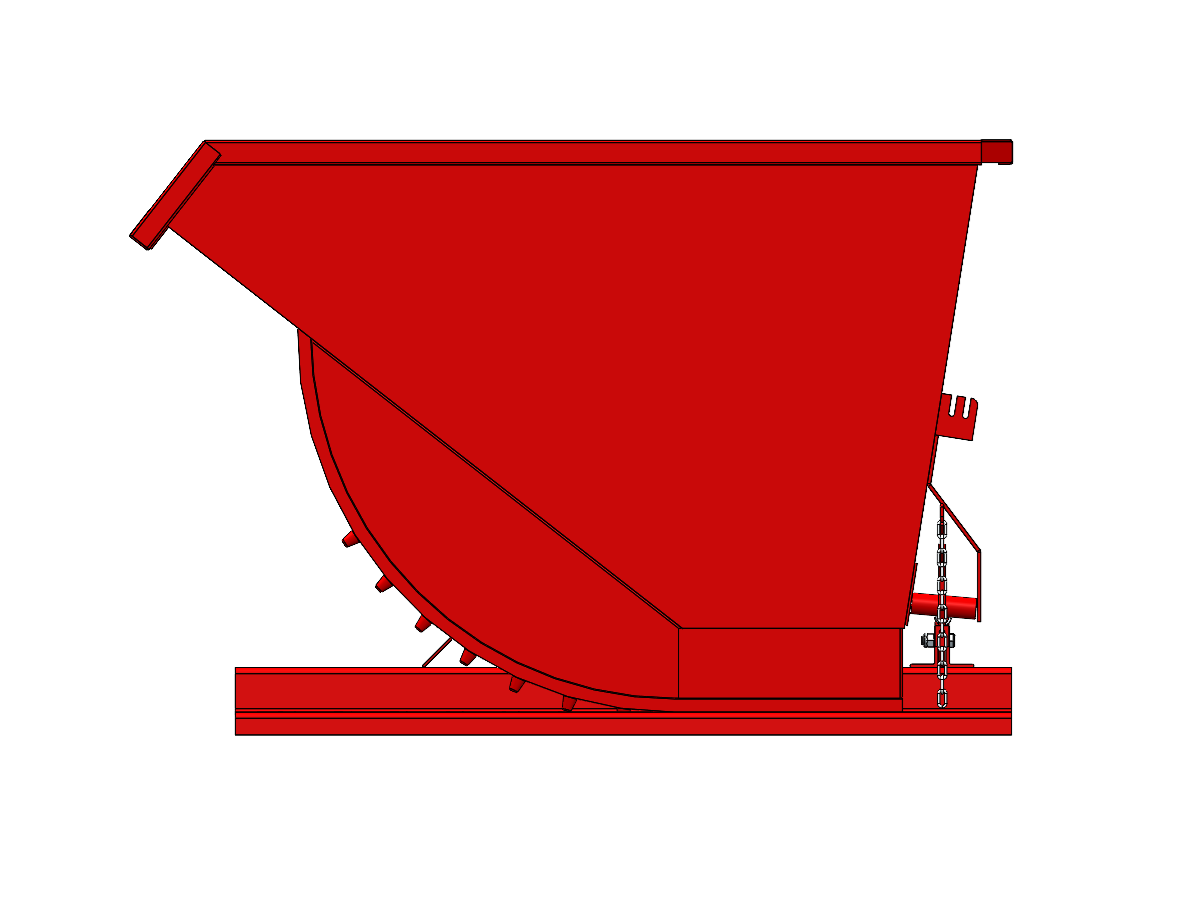

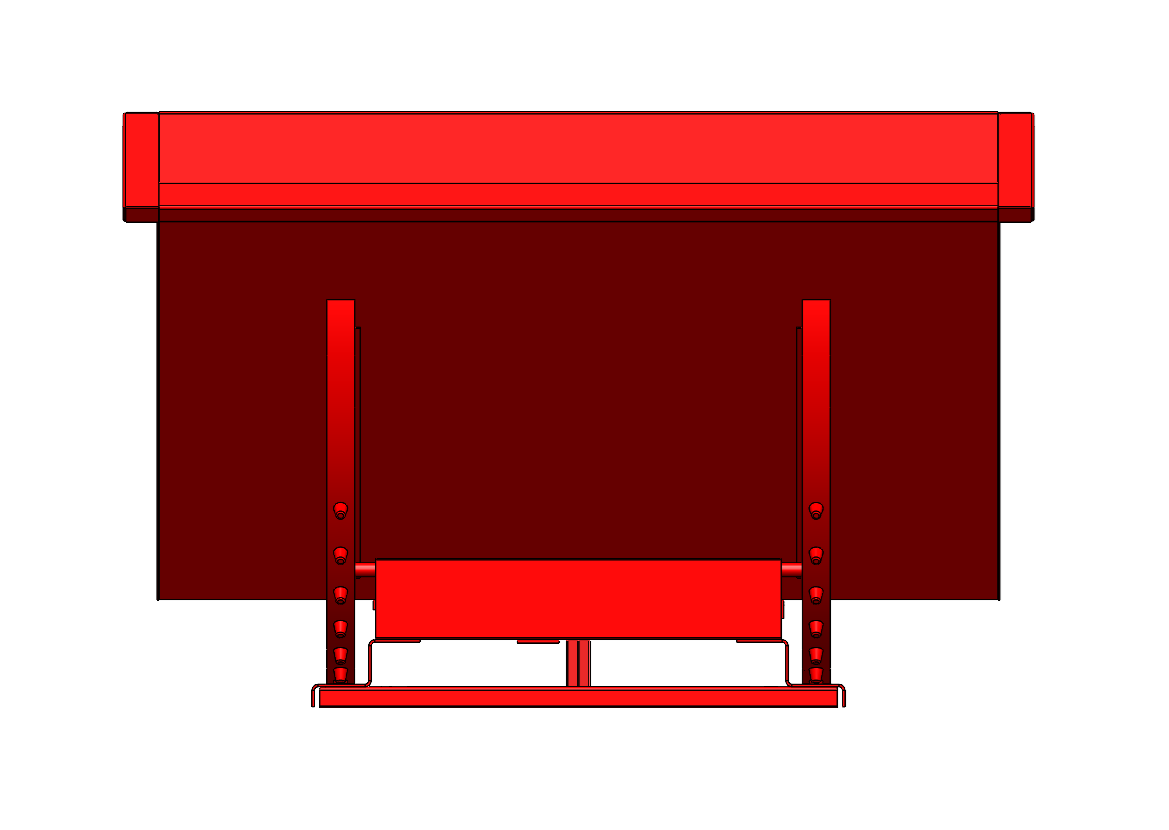

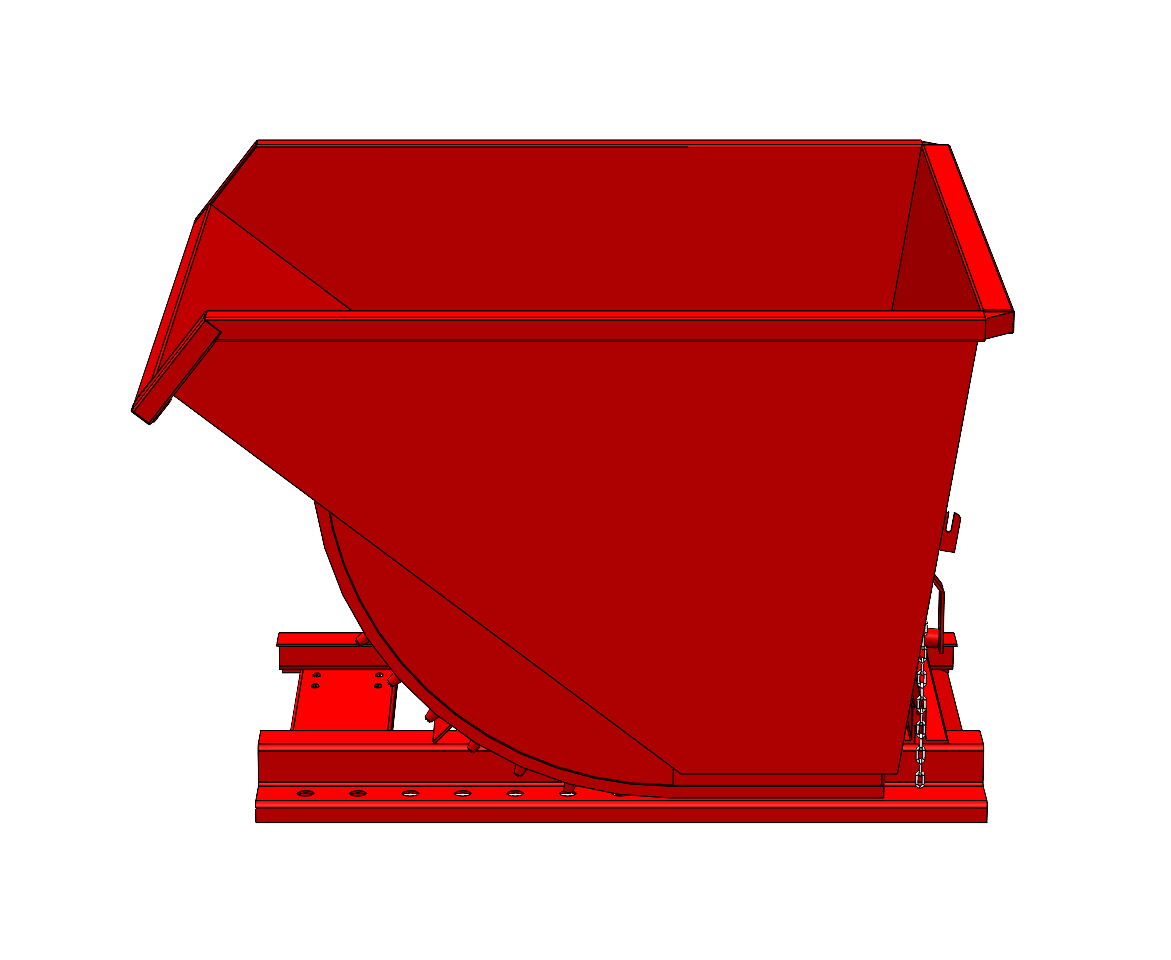

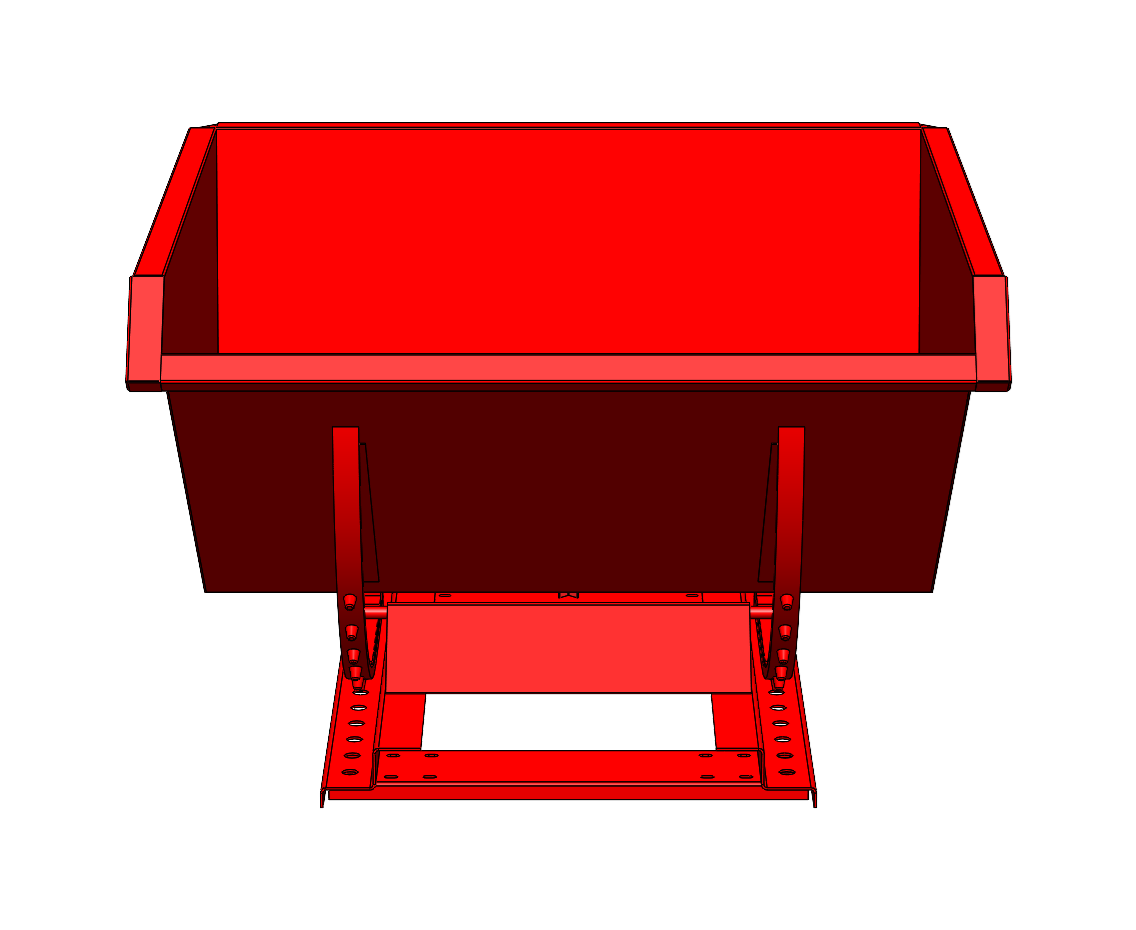

Self Dumping Hoppers

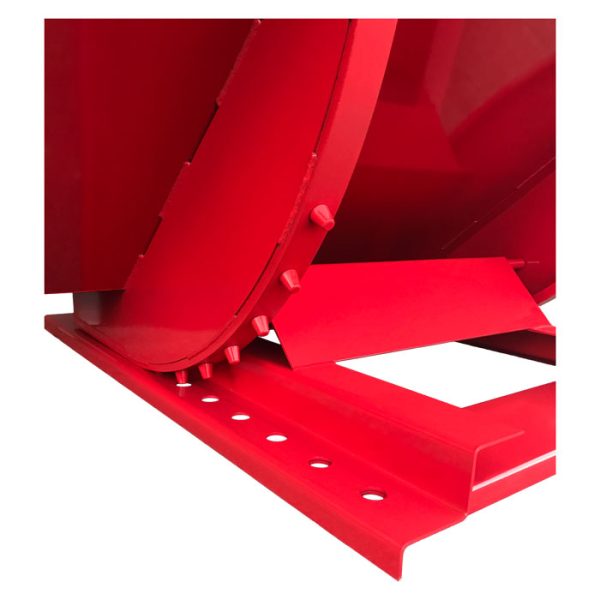

- Perfectly balanced to roll forward when released and dump completely, then automatically return to upright locked position

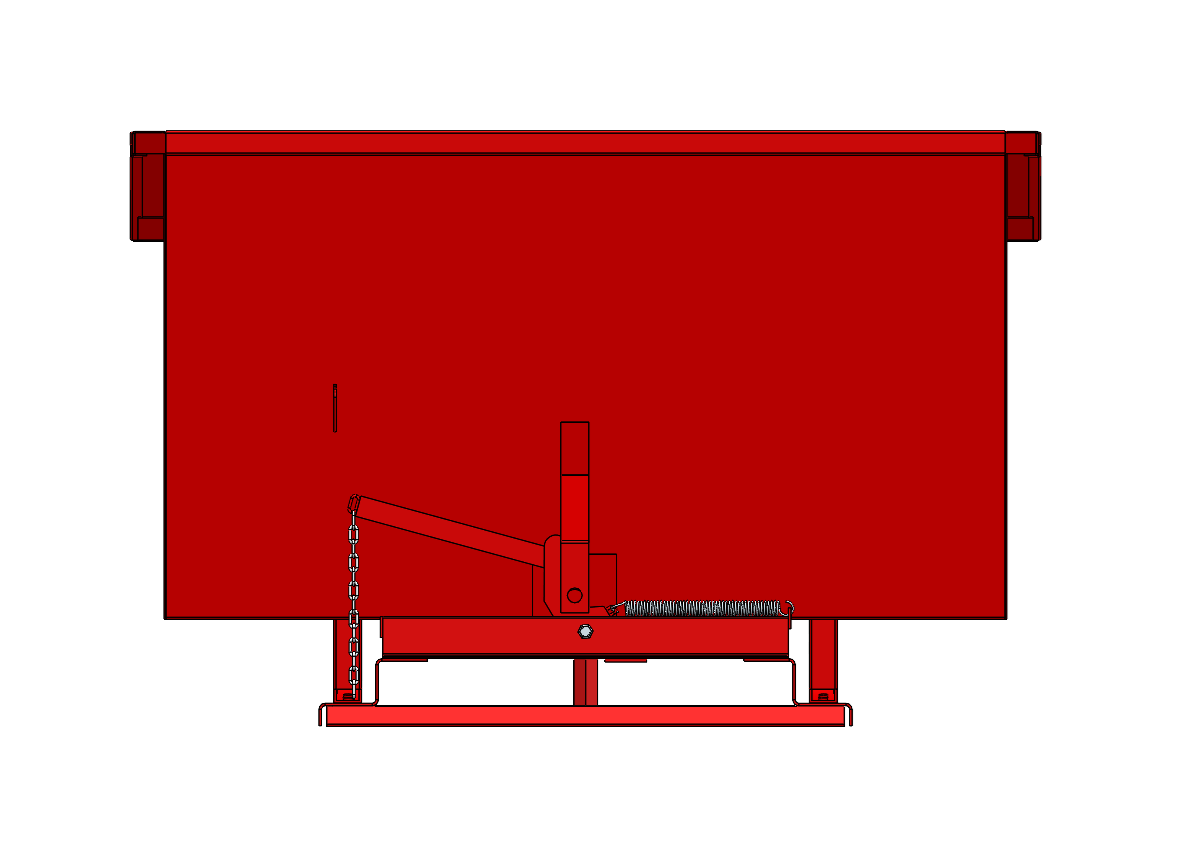

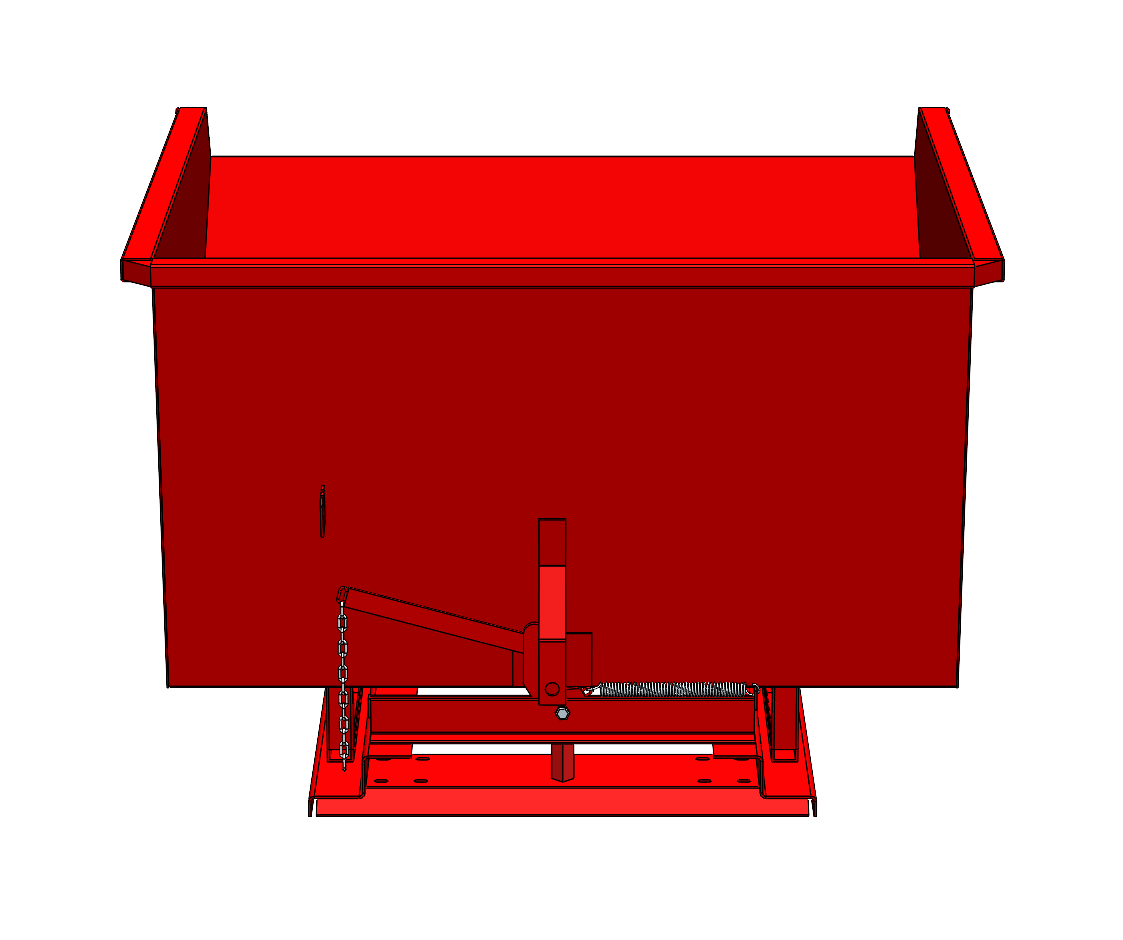

- Reinforced steel locking latch with spring loaded safety catch
- Formed smooth edge around top and pouring lip for extra strength and safety
- All-welded 10 ga. steel plate construction designed for forklift handling of heavy/bulky scrap
- Comes with Safety Pull Chain and Anti-Tip Retainer Chain
- Red rust-resistant paint finish
- Hoppers also available in 3/16″ and 1/4″ Steel

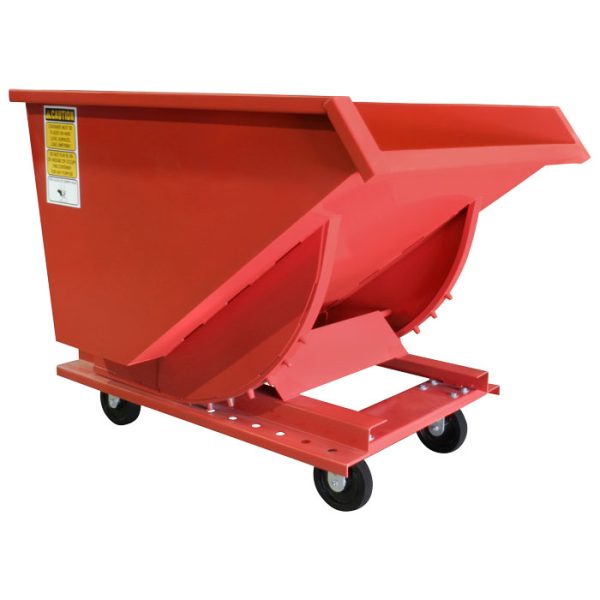

- Casters for Hoppers are available in 6″ or 8″ and come with 2 rigid and 2 swivel
- Capacity: 4000 lbs.
- Conforms to ANSI/TSDF B56.1 Safety Standard

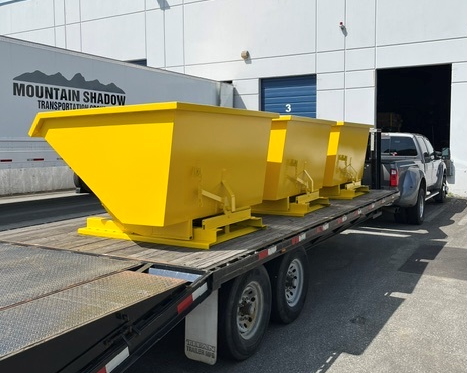

- Optional colour- Yellow
Downloads
Overview
Hoppers:
| Model Number | Capacity (Cubic Yards) |
Dimensions H x W x L |
Steel Spec | Wt. Lbs |
| SDH050 | 1/2 | 32″ x 45″ x 49″ | 10 Ga. | 438 |
| SDH075 | 3/4 | 35″ x 41″ x 58″ | 10 Ga. | 468 |
| SDH100 | 1 | 43″ x 41″ x 63″ | 10 Ga. | 495 |
| SDH150 | 1 1/2 | 43″ x 53″ x 63″ | 10 Ga. | 563 |
| SDH200 | 2 | 43″ x 65″ x 63″ | 10 Ga. | 603 |
| SDH300 | 3 | 52″ x 65″ x 79″ | 10 Ga. | 696 |
| SDH400 | 4 | 63″ x 65″ x 79″ | 10 Ga. | 825 |
Casters:
| Model Number | Caster Type | Caster Size |
| P6 | Phenolic | 6″ |
| P8 | Phenolic | 8″ |
| S6 | Steel | 6″ |
| S8 | Steel | 8″ |

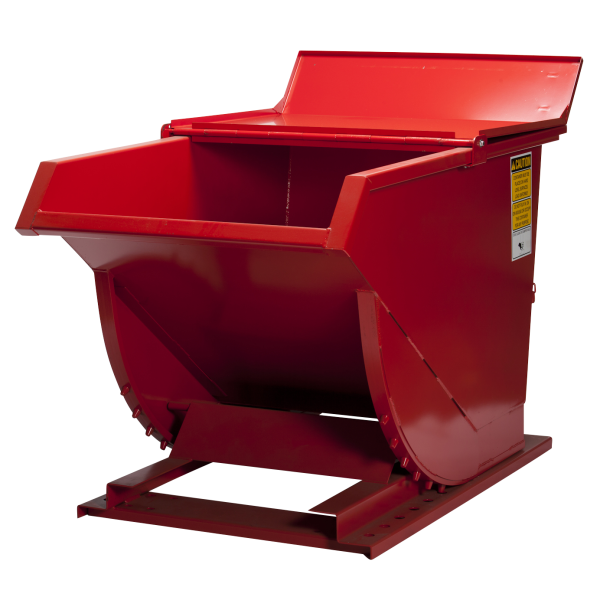

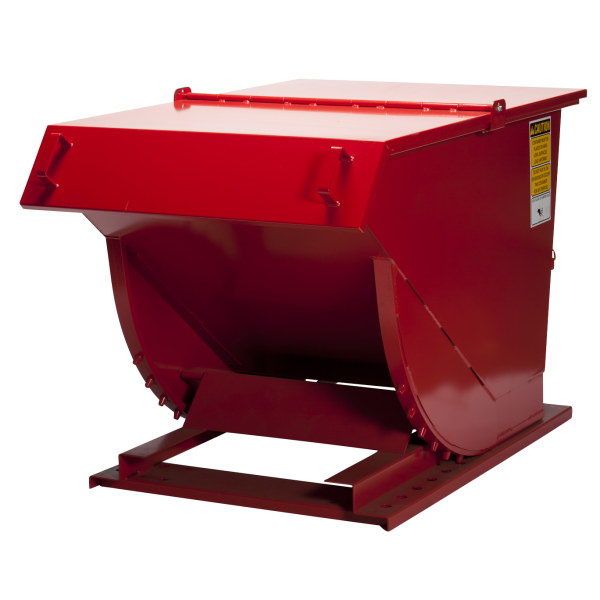

Lids:
| Model Number | Fits Hopper Size | Wt. Lbs |
| 050 | 1/2 | 60 |
| 075 | 3/4 | 65 |
| 100 | 1 | 70 |
| 150 | 1 1/2 | 90 |
| 200 | 2 | 110 |
| 300 | 3 | 130 |
| 400 | 4 | 146 |
