Drying Rack

Description

High Quality Custom Unitran Drying Rack

• 97”H x 60”W x 120”L

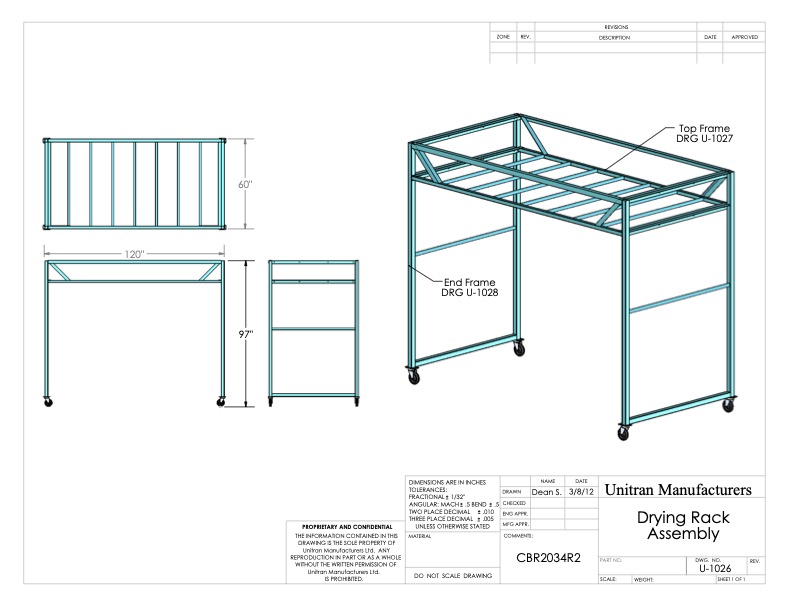

• Similar to drawing# U-1026 attached
• HSS SQ 2” x 2” x .100w end frame uprights (x4) and bottom cross pieces (x2)
• HSS SQ 1.5” x 1.5” x .100w top frame rails (x2)
• HSS RD 1.315” x .100w upper hanging bars (x7) and mid end cross pieces (x2)
• 2” x 2” x 1/8” angle bar mounting cross pieces (x8)
• 2” x 2” x 1/8” angle bar top gussets (x4)
• Powder coat Unitran Safety Blue
• Two 5” swivel casters & two 5” swivel casters w/brake
• Unit ships in 3 pieces

Reference #CSD0106
