Custom Stacking Racks

Description

Unitran high quality stacking rack

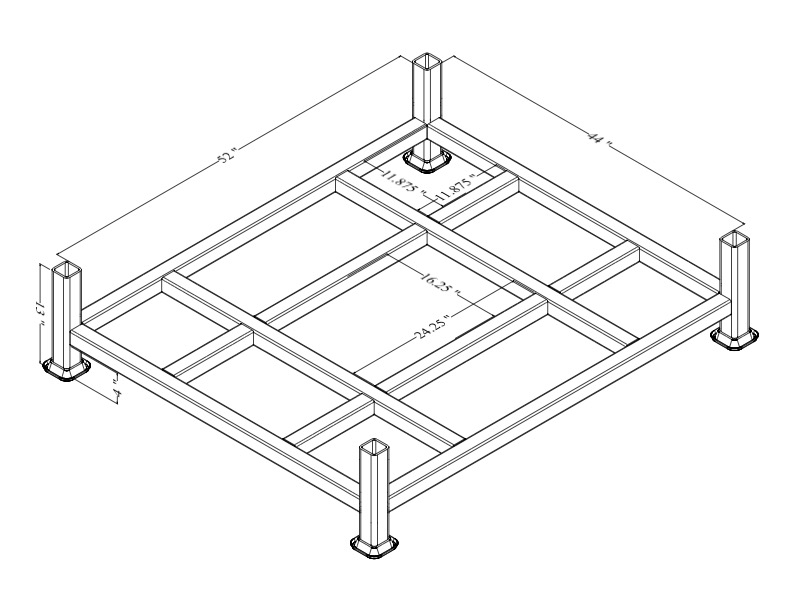

Subject A:

• Welded 2” sq. tubing steel construction
• Designed for storage of loose and palletized goods
• Holds up to 4000 lbs. per rack
• Can be stacked 4 high

Reference: # CJW0045

SubjectB:

High quality Unitran custom stacking rack – 42″ x 240″

• HSS RECT .5″ x 2″ x .188W perimeter frame
• HSS RECT 4″ x 2″ x .125W cross members
• HSS SQ 2.5″ x 2.5″ x .238W post pockets (8)
• HSS SQ 2″ x 2″ x .125W removable posts (8) OAH from bottom of cup fort to top of post
• 10GA forklift pockets (510 style) on 36″ centres with gussets
• Quick connect plates for 8″ swivel casters (QCP-A38H) Casters not included
• Powder coated in Unitran safety blue

Reference #EDV0053

Subject C:

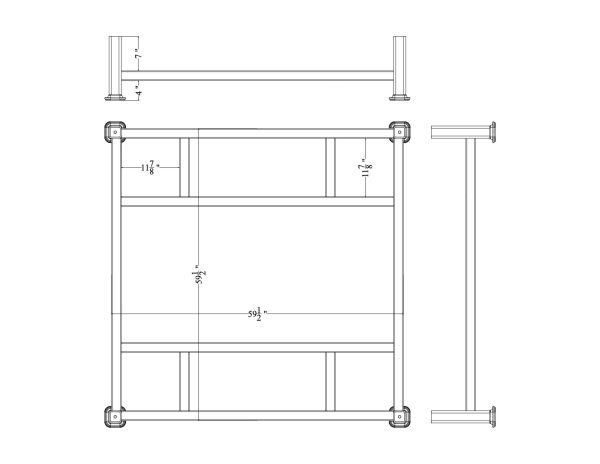

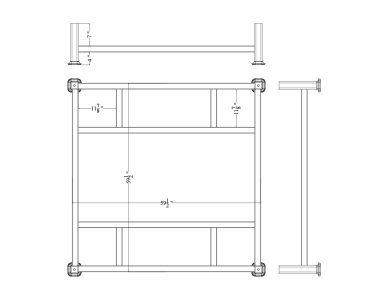

High quality Unitran Custom Stacking Rack Base

SR60120 Rack Base

• Typical stacking rack base construction
• Powder coated Unitran safety blue

Reference: EJM0052

Subject D:

High quality Unitran Custom Stacking Rack

1st Option

• SR4569 stacking rack with fork stirrups & caster plates
• 1/4″ x 2″ flat bae fork stirrups – 3″ x 6″L.D. – on long sides
• 10GA caster plates (4) to suit 7 series casters
• Casters not included
• Powder coated Unitran safety blue

2nd Option

• SRS69 stacking rack side rail
• HSS SQ. 2″ x 2″ x .100W tube construction
• Bolt together construction – ships assembled
• To suit long side of Subject A
• Powder coated Unitran safety blue

Reference #SJM2359

1st Option

2nd Option

Subject E:

High quality custom Unitran stacking rack with mesh deck

1st Option

• Stacking Rack with Mesh Deck – 60″ X 60″
• 2″ X 2″ X 10GA wire mesh deck
• All other construction details same as standard stacking rack
• Powder coated finish

2nd Option

• SRP53 Stacking Rack Post
• HSS sq. 2″ X 2″ X.100W tube X 59″
• Powder Coated finish

Reference: EDW3122

Subject F:

High Quality Custom Unitran Stacking Racks with Removable Posts

1st Option

• SR09054 Stacking Rack – 89.25″ X 53.25″
• 10GA enclosed fork pockets – inside dimensions same as 510 fork pockets
• Typical stacking rack construction
• Powder coated Unitran safety blue

2nd Option

• 48″ Corner Post with Retainer Angle
• HSS SQ 2″ X 2″ X .100W tube X 53″
• 10GA retainer angles 3″ X 3″ X 46″ – notched to clear post pockets
• Powder coated Unitran safety blue

3rd Option

• 60″ Corner Post with Retainer Angle
• HSS SQ 2″ X 2″ X .100W tube X 65″
• 10GA retainer angles 3″ X 3″ X 58″ – notched to clear post pockets
• Powder coated Unitran safety blue

Reference #EHJ0011

Subject G:

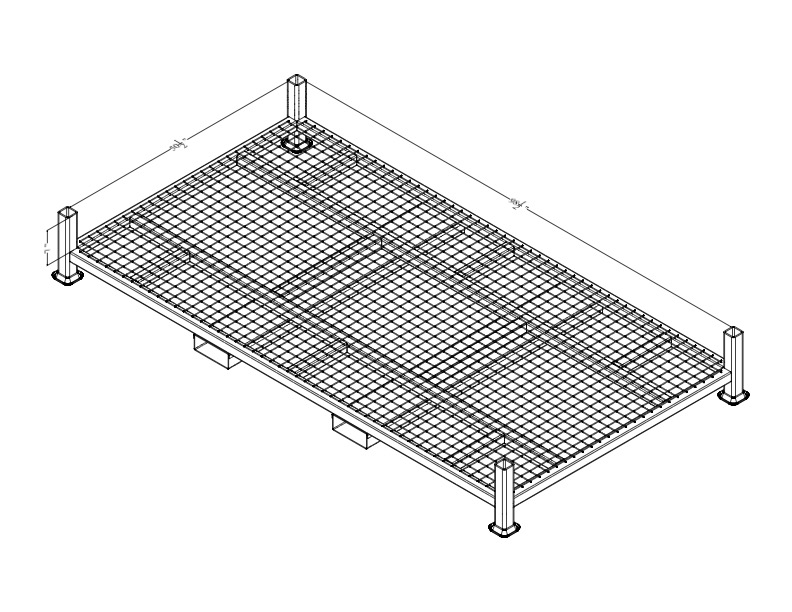

1st Option – SR10355 Stacking Rack – 103” x 55”

• Similar to attached drawing
• 2” x 2” x 10GA wire mesh welded to top of deck
• 10GA enclosed fork pockets – inside dimensions same as 510 fork pockets
• Typical stacking rack construction
• Powder coated Unitran safety blue

2nd Option – SRP42 Stacking Rack Post

• HSS SQ. 2” x 2” x .100W tube x 48”
• Cut to length and de-burred
• Powder coated Unitran safety blue

Reference #EDV0127
